Amerec IT1 Thermostat Control, AI Series

In stock
SKU: 9226-30
Regular price $810.00
- Mounting To -

For more exclusive updates, please follow our social media platforms.

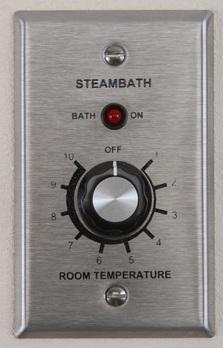

Amerec IT1

Thermostat Control, AI Series

The Amerec IT1 thermostat was designed for use with all AI series boilers requiring 1 room installation. This kit includes thermostat control, sensor, cables, and (2) 3/4" Chrome steam heads.


  • Adjustable room temperature, 90º-124º degrees Fahrenheit
  • Boiler or remote mounting capability
  • Mode indicator light
  • Off position available when I60 switch is not installed
  • 5V DC operation


  • IT1 thermostat control (4-1/2”W x 2-1/2”H)
  • Room sensor (7/8” diameter mounting hole)
  • (2) 3/4" Chrome steam heads
  • 3-lead, 25’ IT1 control cable
  • Mounting hardware
  • 2-lead, 25’ IT1 sensor cable
  • Installation and operation manual
  • Limited warranty


Model IT1
Shipping Weight 5 lbs
DC Voltage 5V DC
Control "Rough In" Cut Out 2-1/8" x 3-3/4"
Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 7/8" Diameter
Generator Control Connection 3 Position Terminal Block
Generator Control Cable 25', 3 Conductor, 22 AWG, Shielded Cable
Width 2-3/4"
Depth 1"
Height 4-1/2"
