Amerec AK36 AK Series 36kW Steam Shower Generator

In stock
SKU: 9014-229
Regular price $11,902.50

For more exclusive updates, please follow our social media platforms.

Amerec AK36

AK Series 36kW Steam Shower Generator

The Amerec AK36 is designed for large home and commercial steam rooms with dimensions up to 1500 adjusted cubic feet (ACF).

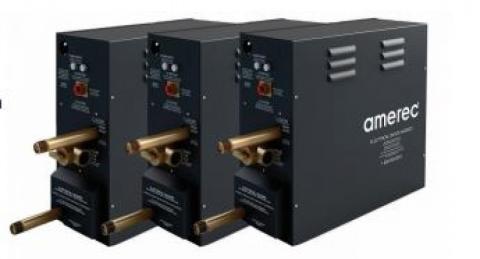

The AK36 is made up of trio generators in tandem (two 11kW and one 14kW generators). Each generator includes a stainless-steel tank, industrial-grade heating elements, durable electronic components, an electronic water-level control system, and a variety of other innovative features.

The high-efficiency Amerec AK36 steam shower generator is engineered to provide bathers with years of reliable and consistent steam bathing experiences. The Amerec AK36 steamer uses a Sequential Temperature Control to ensure a consistent flow of soft steam each bathing session.

Amerec AK Series steam generators are built to power the most demanding steam rooms environments. Crafted of corrosion-resistant stainless-steel, the AK36 steam unit provides long-lasting strength and durability. The unit includes removable heating elements for easy and economical service.

The Amerec AK36 36kW steam generator is available in 240VĀ  or 208VĀ  and can be field wired for single-phase or three-phase configurations.

We recommend the available Amerec Automatic Drain System for each generator with your AK36. The Auto Drain System automatically drains each generator tank after each use to help prevent harmful calcification and lime build-up.

The compact size of the Amerec AK36 allows the steam shower unit to be installed convnenitnly out of sight in cabinets, closets, vanities, and other similar locations.

Amerec AK Series steam room generators can be linked in tandem to accommodate steam rooms up to 1500 adjusted cubic feet. Connection cables are sold separately, and each generator requires a ComfortFlo steam head.

The Amerec AK36 steam bath generator carries a limited lifetime warranty and is fully serviceable. Amerec AK Series steam generators are UL, CSA, and CE listed to ensure your safety.


  • Sequential temperature control for consistent flow
  • Stainless steel tank
  • Industrial grade, serviceable heating elements
  • Durable electronic components
  • Electronic water-level control system
  • Low voltage safety control circuits
  • Available Auto Drain automatic draining system
  • Ability to field wire in 1-phase or 3-phase
  • Ability to connect multiple generators to heat steam baths up to 1500 cubic feet
  • Operates with inside/outside shower, on/off, time/temperature controls
  • Full 3/4" port drain valve
  • ASME safety valve
  • UL/CSA/CE listed


  • 36kW steam bath generator; two 11kW and one 14kW steam generators
  • Two Gang cables
  • Note: Does not include two additional steam heads. First steam head is in Control package.
  • Installation and operation manual
  • Limited warranty


Model AK36
Minimum Adjusted Cubic Feet 1200
Maximum Adjusted Cubic Feet 1500
Kilowatt Rating (KW) 36KW
Shipping Weight (Lbs.) 110 lbs
AC Voltage 240V AC
DC Voltage 5V DC
Phase Single Phase
Water Supply Connection (3) 3/8" NPT
Generator Steam Line Connection (3) 1/2" NPT
Steam Head Connection (3) 1/2" NPT
Drain Connection (3) 3/4" NPT
Safety Relief Valve Connection (3) 3/4" NPT
Safety Relief Valve PSIG (3) 10 PSIG
Control "Rough In" Cut Out 2-3/8" Diameter
Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 7/8" Diameter
Generator Control Connection 8 Pin, Snap-In Connector
Generator Control Cable 25', 8 Conductor, 28 AWG, Shielded Cable
Width In Inches (3) 16-1/2"
Depth In Inches (3) 6-1/4"
Height In Inches (3) 15"
