Amerec AK28 AK Series 28kW Steam Shower Generator

In stock
SKU: 9014-225
Regular price $9,330.00
- Voltage & Phase -

For more exclusive updates, please follow our social media platforms.

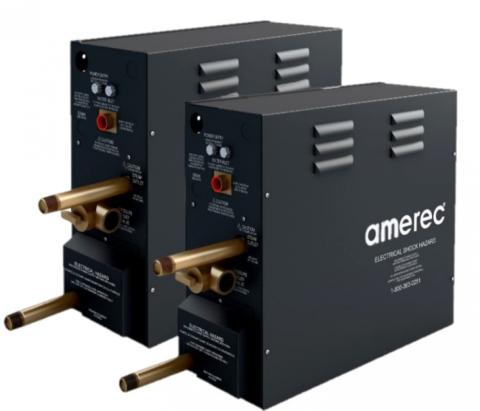

Amerec AK28

AK Series 28kW Steam Shower Generator

The Amerec AK28 is designed for home and day spa steam baths up to 1100 adjusted cubic feet (ACF).

The AK28 is made up of dual generators in tandem (two 14kw generators). Each generator features a stainless-steel tank, industrial-grade heating elements, durable electronic components, an electronic water-level control system, and a variety of other innovative features.

Amerec AK Series steam room generators are designed to provide the most consistent and pleasurable steam bathing experiences. The AK28 steamer uses a Sequential Temperature Control which generates an even flow of soft steam each bathing session. The unit’s heating elements are built for easy and economical service.

The Amerec AK28 steam shower generator is engineered to power the most demanding home and commercial steam room environments. The AK28 steam unit is crafted of corrosion-resistant steel for years of reliable, safe, and efficient operation.

The compact Amerec AK28 steam shower unit can be installed conveniently out of sight in cabinets, closets, vanities, and other similar locations.

The Amerec AK28 28kW steam generator is available in 240V or 208Vand can be field wired for single-phase or three-phase configurations.

Homeowners and day spas rely on Amerec AK Series steam generators for low cost, efficiency, and durability. Amerec AK Series steam room generators are engineered to provide years of reliable daily use.

The Amerec AK28 steam room generator requires the available K3 control for operation which regulate bathing duration and temperature, or the R30K 30-minute timer. Each control package includes a matching finish ComfortFlo steam head.

Amerec AK Series steam can be linked in tandem to accommodate steam shower enclosures larger than 1100 adjusted cubic feet. Connection cables are sold separately, and each generator requires a ComfortFlo steam head.

We recommend the available Amerec Automatic Drain System for each generator with your AK28. The Auto Drain System automatically drains each generator tank after each use to help prevent harmful calcification and lime build-up.

The Amerec AK28 steam bath generator carries a limited lifetime warranty and is fully serviceable. Amerec AK Series steam shower generators are UL, CSA, and CE listed to ensure your safety.


  • Sequential temperature control for consistent flow
  • Stainless steel tank
  • Industrial grade, serviceable heating elements
  • Durable electronic components
  • Electronic water-level control system
  • Low voltage safety control circuits
  • Available Auto Drain automatic draining system
  • Ability to field wire in 1-phase or 3-phase
  • Ability to connect multiple generators to heat steam baths larger than 1100 cubic feet
  • Operates with inside/outside shower, on/off, time/temperature controls
  • Full 3/4" port drain valve
  • ASME safety valve
  • UL/CSA/CE listed


  • 28kW steam bath generator; two 14kw steam generators
  • Gang cable
  • Note: Does not include additional steam head. First steam head comes with Control package.
  • Installation and operation manual
  • Limited warranty


Model AK28
Minimum Adjusted Cubic Feet 900
Maximum Adjusted Cubic Feet 1100
Kilowatt Rating (KW) 28KW
Shipping Weight (Lbs.) 70 lbs
AC Voltage 240V AC
DC Voltage 5V DC
Phase Single Phase
Water Supply Connection (2) 3/8" NPT
Generator Steam Line Connection (2) 1/2" NPT
Steam Head Connection (2) 1/2" NPT
Drain Connection (2) 3/4" NPT
Safety Relief Valve Connection (2) 3/4" NPT
Safety Relief Valve PSIG (2) 10 PSIG
Control "Rough In" Cut Out 2-3/8" Diameter
Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 7/8" Diameter
Generator Control Connection 8 Pin, Snap-In Connector
Generator Control Cable 25', 8 Conductor, 28 AWG, Shielded Cable
Width In Inches (2) 16-1/2"
Depth In Inches (2) 6-1/4"
Height In Inches (2) 15"
