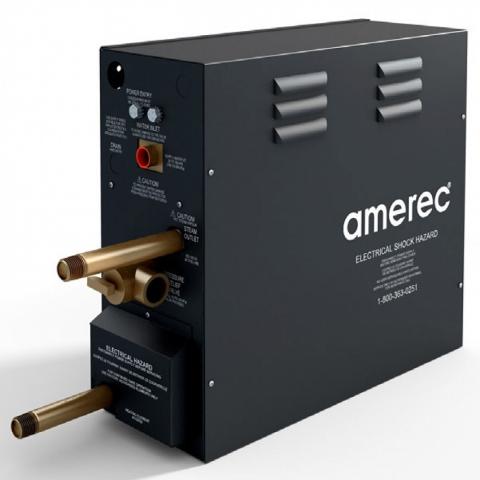

Amerec AK14 Series 14KW Steam Shower Generator

In stock
SKU: 9014-129
Regular price $4,920.00
- Voltage & Phase -

For more exclusive updates, please follow our social media platforms.

Amerec AK14

AK Series 14KW Steam Shower Generator

The Amerec AK14 is engineered for home and day spa steam baths up to 550 adjusted cubic feet (ACF).

The Amerec AK14 steam shower generator is constructed of durable stainless-steel for years of reliable, efficient operation. The AK14 includes industrial-strength heating elements, durable electronic components and parts, electronic water-level control system, and several other innovative components.

Amerec AK Series steam generators are designed to provide the most consistent temperature during the steam bath. The AK14 steam unit uses a Sequential Temperature which ensures a consistent flow of soft steam and a more pleasurable bathing experience.

The Amerec AK14 steam shower generator is engineered for long-lasting performance and durability. The unit is equipped with a corrosion-resistant stainless-steel tank, water level probes, and removable heating elements for easy and economical service.
The compact size of the AK14 allows the steam shower unit to be installed conveniently out of sight in closets, vanities, cabinets, and other similar locations.

The Amerec AK14 14kW steam generator is available in 240V  or 208V  and can be field wired for single-phase or three-phase configurations.

The Amerec AK14 generator is engineered to power the most demanding home and commercial steam room environments. Homeowners, health clubs, and day spas rely on the Amerec AK Series generators for dependable daily use.

Amerec AK Series residential steam shower generators can be linked in tandem to accommodate steam shower enclosures larger than 550 adjusted cubic feet. Connection cables are sold separately, and each generator requires a ComfortFlo steam head.

The Amerec AK14 steam bath generator requires the available
K3 control for operation which regulates bathing duration and temperature, or the R30K 30-minute timer. Each control package includes a matching finish ComfortFlo steam head. The AK14 requires the purchase of a second ComfortFlo steam head.

We recommend Amerec's Automatic Drain System with your AK14 which drains the generator tank after each use to help prevent lime-build up and calcification of the unit.

The Amerec AK14 steam room generator carries a limited lifetime warranty and is fully serviceable. Amerec AK series generators are UL, CSA, and CSE listed to ensure your safety.



  • 14KW steam bath generator
  • Installation and operation manual
  • Limited warranty


Model AK14
Minimum Adjusted Cubic Feet 350
Maximum Adjusted Cubic Feet 550
Kilowatt Rating (KW) 14kW
Shipping Weight (Lbs.) 35 lbs
AC Voltage 240V AC
DC Voltage 5V DC
Phase Single Phase
Nominal Amperage 21/38Amps
Recommended Protective Device 30/50 Amp
Recommended Minimum Copper Wire Supply 10/8 AWG
Water Supply Connection 3/8" NPT
Generator Steam Line Connection 1/2" NPT
Steam Head Connection 1/2" NPT
Drain Connection 3/4" NPT
Safety Relief Valve Connection 3/4" NPT
Safety Relief Valve PSIG 10 PSIG
Control "Rough In" Cut Out 2-3/8" Diameter
Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 7/8" Diameter
Generator Control Connection 8 Pin, Snap-In Connector
Generator Control Cable 25', 8 Conductor, 28 AWG, Shielded Cable
Width In Inches 16-1/2"
Depth In Inches 6-1/4"
Height In Inches 15"
