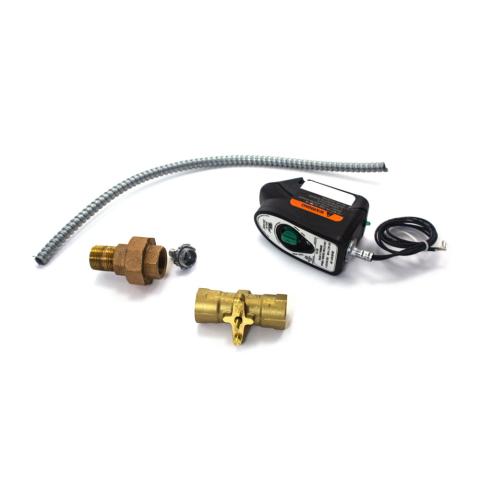

Automatic Drain System, 3/4" NPT, AK/3K Series

The ADK automatic drain valve, automatically drains the steam generator tank by gravity, following each steam bath and flushes water through the tank to reduce sediment build up and provide longer element life. The tank remains empty until the next steam bath, when the tank is refilled with fresh water for a more pleasant bathing experience. One drain is needed per generator installed.

Features:

• For use with 3-element steam generators
• .04A, motorized actuation, 50 Hz
• Two position, normally open
• Brass valve body with 3/4” NPT connections
• Two lead integral electrical lead for terminal connection
• Measures 8-1/2”L x 4”H x 2-3/8”W
• Gravity drain

Includes:
